Architect Grille LED Downlight

MM-GL

Controlled linear light for comfortable, open spaces.

Popular 12 W · 14 W
CRI ≥90
IP20

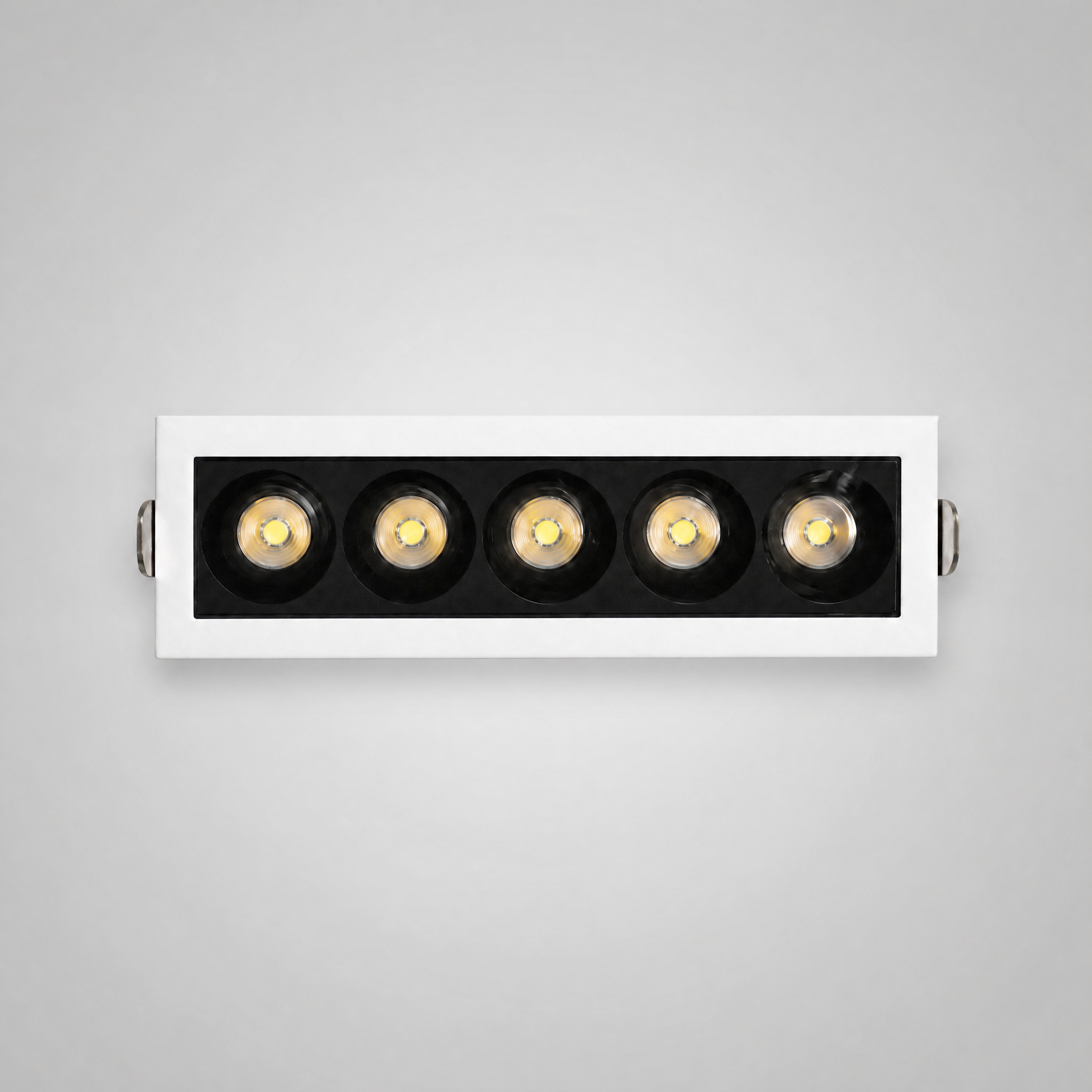

Architect Grille LED downlight — five-head linear grille with matte white frame and spring clips

The Architect Grille LED Downlight uses recessed grille optics to control the light source while providing even, focused illumination. Designed for task areas, kitchens, offices and open-plan interiors, it creates a clean architectural ceiling line while balancing useful light with visual comfort.

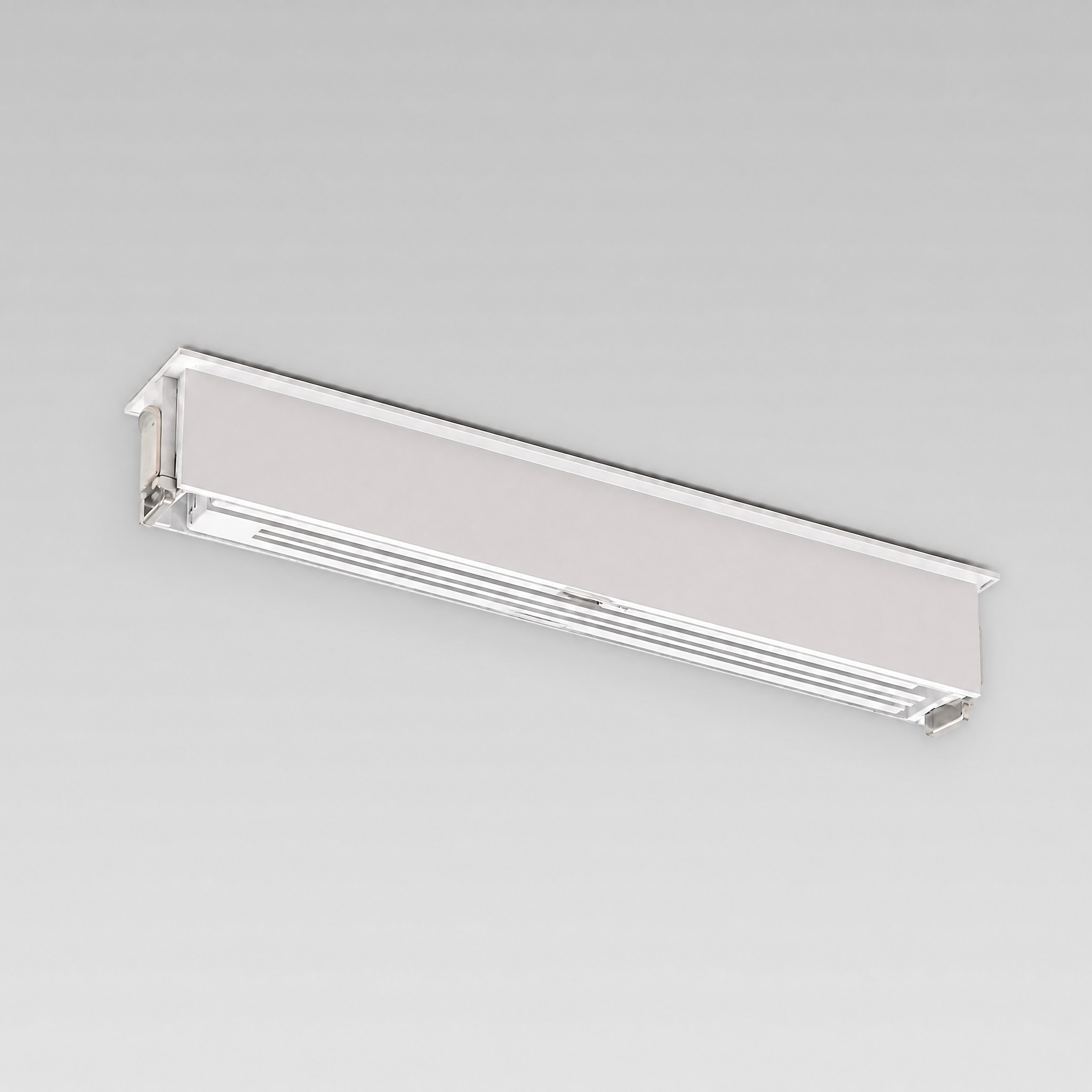

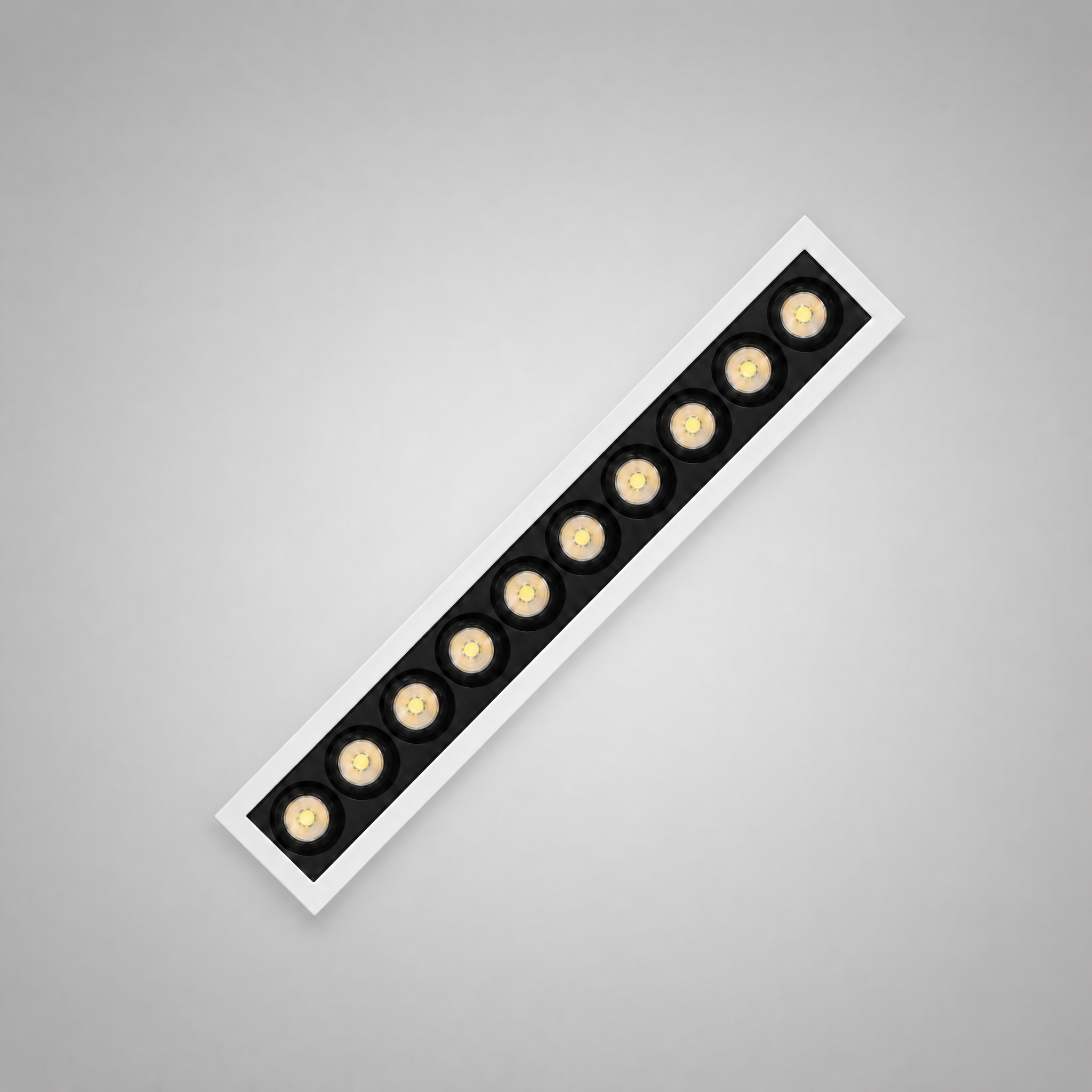

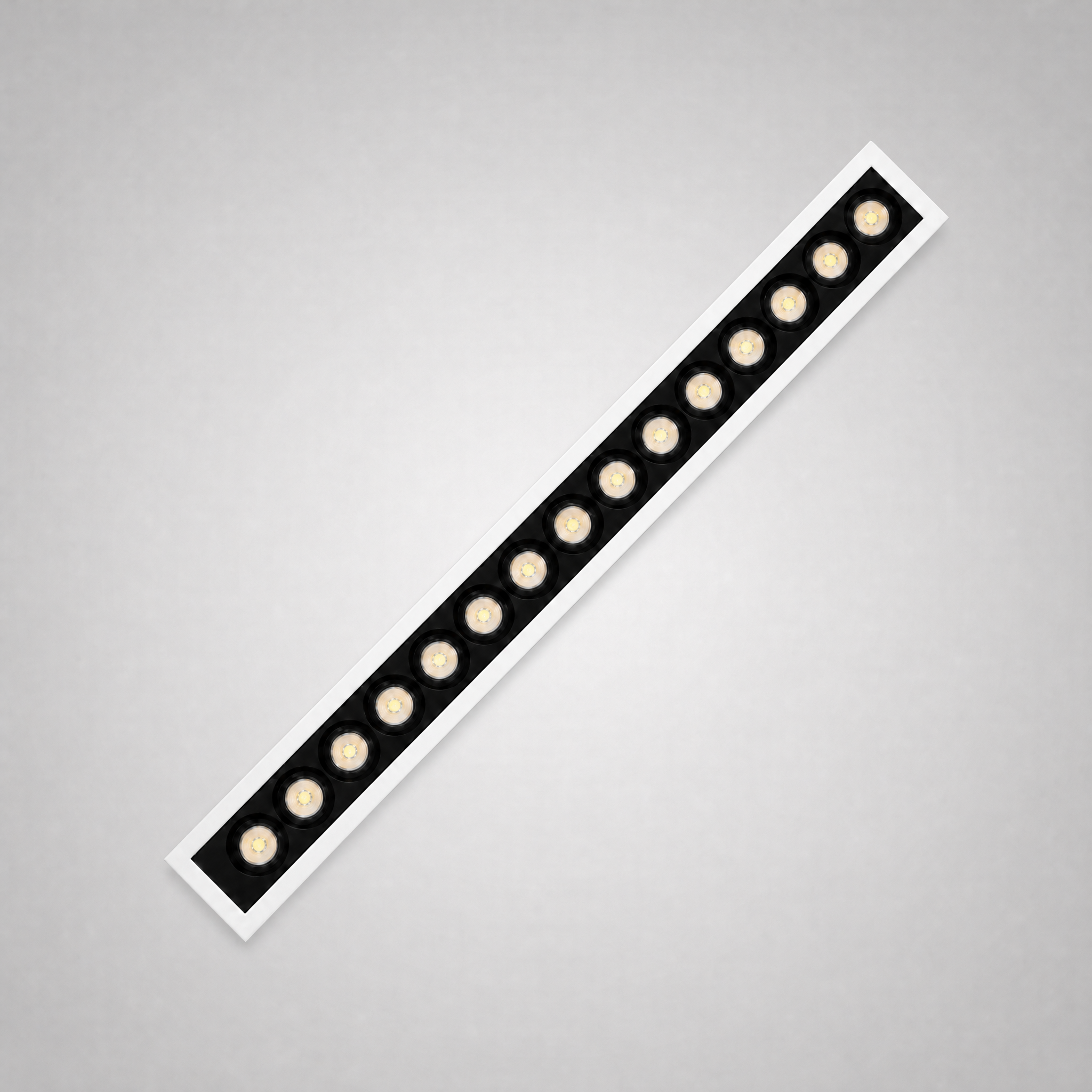

Product views

Architect in detail

Specifications

Technical specifications

Electrical

Input voltage / frequency: 230–240 V~ 50 Hz
Driver: External isolated LED driver

Optical

Beam angle: 24°
Colour temperature: 3000 / 4000 / 6000 K
Colour rendering (CRI): ≥90
Luminous efficacy: ≥65 lm/W

Mechanical

Installation: Recessed
Main material: Die-cast aluminium + PC
Ingress protection: IP20
Ambient temperature (ta): 25 °C

Warranty

Warranty period: 3 years

Model range

Popular models

MM-GL12

Power

12 W

Luminous flux

800 lm

Dimensions

45 × 285 × H47 mm

Cut-out

35 × 275 mm

Beam angle

24°

CCT

3000 / 4000 / 6000 K

CRI

≥90

Power factor

>0.93
MM-GL14

Power

14 W

Luminous flux

910 lm

Dimensions

45 × 285 × H47 mm

Cut-out

35 × 275 mm

Beam angle

24°

CCT

3000 / 4000 / 6000 K

CRI

≥90

Power factor

>0.93

Architect Grille LED Downlight — full model range
Model	Power	Luminous flux	Dimensions	Cut-out	Beam angle	CCT	CRI	Power factor
MM-GL6	6 W	400 lm	45 × 147 × H47 mm	35 × 137 mm	24°	3000 / 4000 / 6000 K	≥90	>0.88
MM-GL8	8 W	520 lm	45 × 147 × H47 mm	35 × 137 mm	24°	3000 / 4000 / 6000 K	≥90	>0.93
MM-GL10	10 W	650 lm	45 × 285 × H47 mm	35 × 275 mm	24°	3000 / 4000 / 6000 K	≥90	>0.95
MM-GL12	12 W	800 lm	45 × 285 × H47 mm	35 × 275 mm	24°	3000 / 4000 / 6000 K	≥90	>0.93
MM-GL14	14 W	910 lm	45 × 285 × H47 mm	35 × 275 mm	24°	3000 / 4000 / 6000 K	≥90	>0.93
MM-GL16	16 W	1050 lm	45 × 410 × H47 mm	35 × 405 mm	24°	3000 / 4000 / 6000 K	≥90	>0.93
MM-GL18	18 W	1200 lm	45 × 410 × H47 mm	35 × 405 mm	24°	3000 / 4000 / 6000 K	≥90	>0.93
MM-GL20	20 W	1320 lm	45 × 410 × H47 mm	35 × 405 mm	24°	3000 / 4000 / 6000 K	≥90	>0.93
MM-GL22	22 W	1450 lm	45 × 410 × H47 mm	35 × 405 mm	24°	3000 / 4000 / 6000 K	≥90	>0.93

Technical evidence

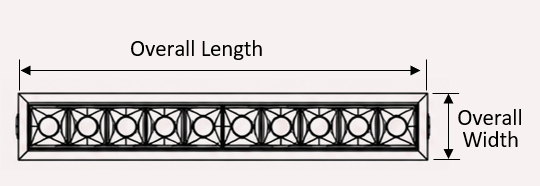

Dimensions & technical drawings

Model dimensions

Architect Grille LED Downlight — model dimensions
Model	Cut-out	Dimensions
MM-GL6	35 × 137 mm	45 × 147 × H47 mm
MM-GL8	35 × 137 mm	45 × 147 × H47 mm
MM-GL10	35 × 275 mm	45 × 285 × H47 mm
MM-GL12	35 × 275 mm	45 × 285 × H47 mm
MM-GL14	35 × 275 mm	45 × 285 × H47 mm
MM-GL16	35 × 405 mm	45 × 410 × H47 mm
MM-GL18	35 × 405 mm	45 × 410 × H47 mm
MM-GL20	35 × 405 mm	45 × 410 × H47 mm
MM-GL22	35 × 405 mm	45 × 410 × H47 mm
