Lighting

Essence Tri-CCT Adjustable LED Downlight

MM-CLD

Flexible lighting for everyday spaces.

Popular 8 W · 10 W
CRI ≥90
IP20

Essence Tri-CCT adjustable LED downlight — front view showing the matte white trim and adjustable gimbal reflector

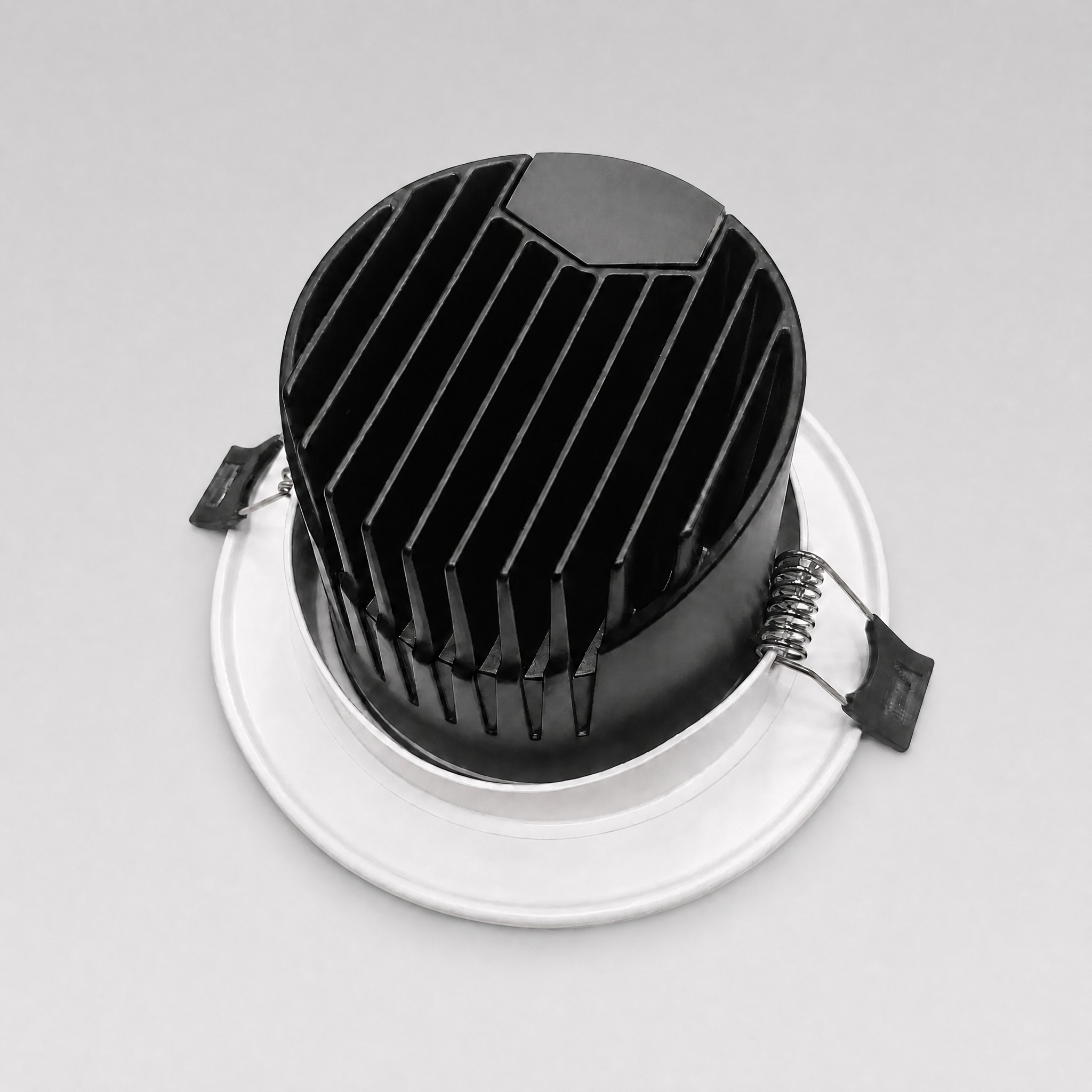

The Essence Tri-CCT Adjustable LED Downlight combines adjustable tilt with selectable colour temperature, allowing the light tone to be chosen on-site without changing the fitting. Built on the same die-cast aluminium platform as the Essence series, it brings practical flexibility while maintaining a consistent, uncluttered ceiling aesthetic.

Product views

Essence in detail

Specifications

Technical specifications

Electrical

Input voltage / frequency: 230–240 V~ 50 Hz
Driver: External isolated LED driver

Optical

Beam angle: 24° / 36° / 55°
Colour temperature: 3000 / 4000 / 6500 K (selectable)
Colour rendering (CRI): ≥90
Luminous efficacy: ≥80 lm/W

Mechanical

Installation: Recessed
Main material: Die-cast aluminium + PC
Ingress protection: IP20
Ambient temperature (ta): 25 °C

Warranty

Warranty period: 3 years

Model range

Popular models

MM-CLD8

Power

8 W

Luminous flux

650 lm

Dimensions

Ø90 × H55 mm

Cut-out

Ø75 mm

Beam angle

24° / 36° / 55°

CCT

3000 / 4000 / 6500 K

CRI

≥90

Power factor

>0.85
MM-CLD10

Power

10 W

Luminous flux

850 lm

Dimensions

Ø90 × H55 mm

Cut-out

Ø75 mm

Beam angle

24° / 36° / 55°

CCT

3000 / 4000 / 6500 K

CRI

≥90

Power factor

>0.85

Essence Tri-CCT Adjustable LED Downlight — full model range
Model	Power	Luminous flux	Dimensions	Cut-out	Beam angle	CCT	CRI	Power factor
MM-CLD4	4 W	350 lm	Ø68 × H40 mm	Ø55 mm	24° / 36° / 55°	3000 / 4000 / 6500 K	≥90	>0.8
MM-CLD6	6 W	500 lm	Ø68 × H40 mm	Ø55 mm	24° / 36° / 55°	3000 / 4000 / 6500 K	≥90	>0.8
MM-CLD8	8 W	650 lm	Ø90 × H55 mm	Ø75 mm	24° / 36° / 55°	3000 / 4000 / 6500 K	≥90	>0.85
MM-CLD10	10 W	850 lm	Ø90 × H55 mm	Ø75 mm	24° / 36° / 55°	3000 / 4000 / 6500 K	≥90	>0.85
MM-CLD12	12 W	1000 lm	Ø110 × H70 mm	Ø95 mm	24° / 36° / 55°	3000 / 4000 / 6500 K	≥90	>0.9
MM-CLD14	14 W	1150 lm	Ø110 × H70 mm	Ø95 mm	24° / 36° / 55°	3000 / 4000 / 6500 K	≥90	>0.9
MM-CLD16	16 W	1300 lm	Ø110 × H70 mm	Ø95 mm	24° / 36° / 55°	3000 / 4000 / 6500 K	≥90	>0.9
MM-CLD18	18 W	1450 lm	Ø110 × H70 mm	Ø95 mm	24° / 36° / 55°	3000 / 4000 / 6500 K	≥90	>0.9

Technical evidence

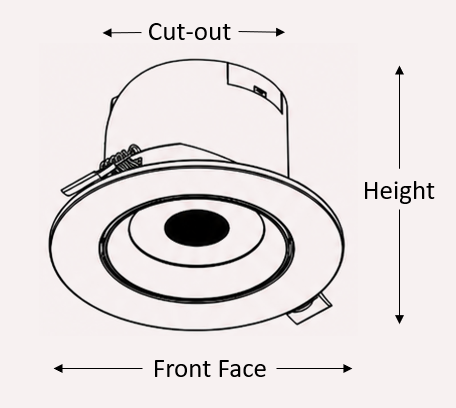

Dimensions & technical drawings

Model dimensions

Essence Tri-CCT Adjustable LED Downlight — model dimensions
Model	Cut-out	Face diameter	Height
MM-CLD4	Ø55 mm	Ø68 mm	40 mm
MM-CLD6	Ø55 mm	Ø68 mm	40 mm
MM-CLD8	Ø75 mm	Ø90 mm	55 mm
MM-CLD10	Ø75 mm	Ø90 mm	55 mm
MM-CLD12	Ø95 mm	Ø110 mm	70 mm
MM-CLD14	Ø95 mm	Ø110 mm	70 mm
MM-CLD16	Ø95 mm	Ø110 mm	70 mm
MM-CLD18	Ø95 mm	Ø110 mm	70 mm
