Coastal IP44 LED Downlight

MM-DLW

Moisture-ready lighting for laundry spaces, bathroom ceilings in suitable dry areas, and covered outdoor areas.

Popular 10 W · 12 W
CRI ≥90
Luminaire IP44 / Driver IP20

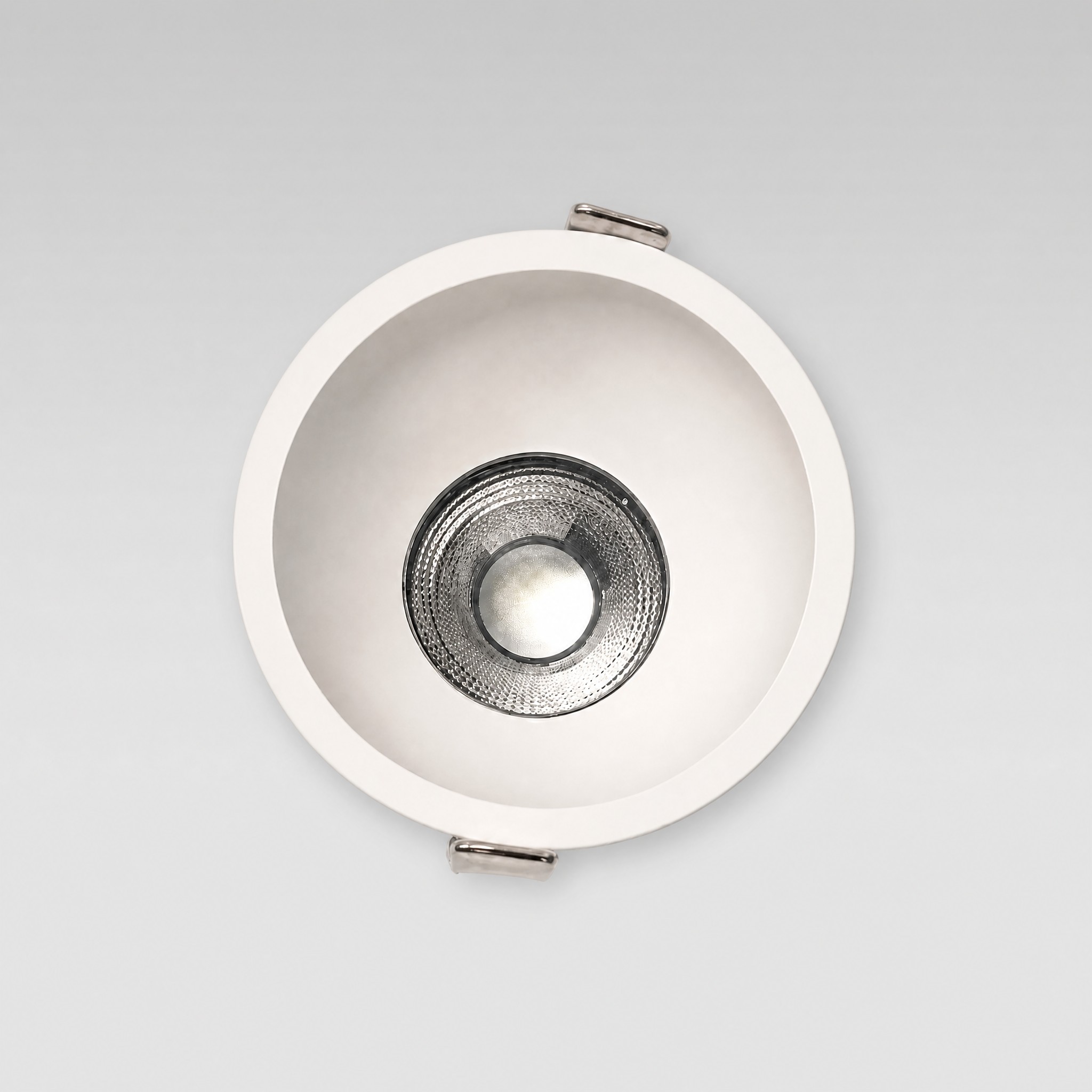

Coastal IP44 LED downlight — front view showing the matte white trim and faceted silver reflector

The Coastal IP44 LED Downlight is designed for laundry spaces, bathroom ceilings in suitable dry areas, and covered outdoor areas where added moisture protection is needed. Its IP44-rated luminaire and clean, sealed construction provide a practical solution while maintaining a refined ceiling finish.

Product views

Coastal in detail

Specifications

Technical specifications

Electrical

Input voltage / frequency: 230–240 V~ 50 Hz
Driver: External isolated LED driver

Optical

Beam angle: 24° / 36° / 55°
Colour temperature: 3000 / 4000 / 6000 K
Colour rendering (CRI): ≥90
Luminous efficacy: ≥70 lm/W

Mechanical

Installation: Recessed
Main material: Die-cast aluminium + PC
Ingress protection: Luminaire IP44 / Driver IP20
Ambient temperature (ta): 25 °C

Warranty

Warranty period: 3 years

Model range

Popular models

MM-DLW10

Power

10 W

Luminous flux

700 lm

Dimensions

Ø82 × H63 mm

Cut-out

Ø75 mm

Beam angle

24° / 36° / 55°

CCT

3000 / 4000 / 6000 K

CRI

≥90

Power factor

>0.95
MM-DLW12

Power

12 W

Luminous flux

840 lm

Dimensions

Ø82 × H63 mm

Cut-out

Ø75 mm

Beam angle

24° / 36° / 55°

CCT

3000 / 4000 / 6000 K

CRI

≥90

Power factor

>0.93

Coastal IP44 LED Downlight — full model range
Model	Power	Luminous flux	Dimensions	Cut-out	Beam angle	CCT	CRI	Power factor
MM-DLW4	4 W	280 lm	Ø60 × H53 mm	Ø55 mm	24° / 36° / 55°	3000 / 4000 / 6000 K	≥90	>0.8
MM-DLW6	6 W	420 lm	Ø60 × H53 mm	Ø55 mm	24° / 36° / 55°	3000 / 4000 / 6000 K	≥90	>0.88
MM-DLW8	8 W	560 lm	Ø60 × H53 mm	Ø55 mm	24° / 36° / 55°	3000 / 4000 / 6000 K	≥90	>0.93
MM-DLW10	10 W	700 lm	Ø82 × H63 mm	Ø75 mm	24° / 36° / 55°	3000 / 4000 / 6000 K	≥90	>0.95
MM-DLW12	12 W	840 lm	Ø82 × H63 mm	Ø75 mm	24° / 36° / 55°	3000 / 4000 / 6000 K	≥90	>0.93
MM-DLW14	14 W	980 lm	Ø82 × H63 mm	Ø75 mm	24° / 36° / 55°	3000 / 4000 / 6000 K	≥90	>0.93
MM-DLW16	16 W	1120 lm	Ø105 × H76 mm	Ø95 mm	24° / 36° / 55°	3000 / 4000 / 6000 K	≥90	>0.93
MM-DLW18	18 W	1260 lm	Ø105 × H76 mm	Ø95 mm	24° / 36° / 55°	3000 / 4000 / 6000 K	≥90	>0.93

Technical evidence

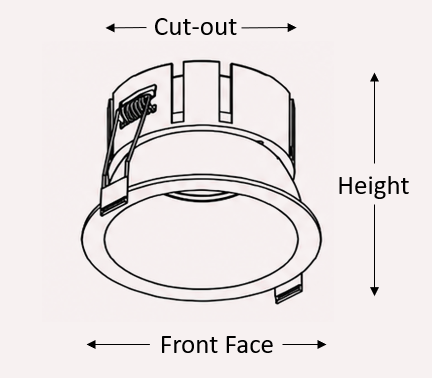

Dimensions & technical drawings

Model dimensions

Coastal IP44 LED Downlight — model dimensions
Model	Cut-out	Face diameter	Height
MM-DLW4	Ø55 mm	Ø60 mm	53 mm
MM-DLW6	Ø55 mm	Ø60 mm	53 mm
MM-DLW8	Ø55 mm	Ø60 mm	53 mm
MM-DLW10	Ø75 mm	Ø82 mm	63 mm
MM-DLW12	Ø75 mm	Ø82 mm	63 mm
MM-DLW14	Ø75 mm	Ø82 mm	63 mm
MM-DLW16	Ø95 mm	Ø105 mm	76 mm
MM-DLW18	Ø95 mm	Ø105 mm	76 mm
