Essence Adjustable LED Downlight
MM-CL
Adjustable lighting for a clean, considered ceiling.
- Popular 8 W · 10 W
- CRI ≥90
- IP20
The Essence Adjustable LED Downlight directs light where it is needed through an adjustable tilt mechanism. Its die-cast aluminium housing and minimalist trim maintain a calm, uncluttered ceiling, making it a considered choice for contemporary residential and commercial interiors.
Product views
Essence in detail
Specifications
Technical specifications
Performance
- Power
- 4 W – 18 W
- Light output
- 350 – 1450 lm
- Colour temperature
- 3000 / 4000 / 6000 K
- Colour rendering (CRI)
- ≥90
- Beam angle
- 24° / 36° / 55°
- Luminous efficacy
- ≥80 lm/W
- Average lifespan
- 50,000 hours
Electrical
- Input voltage
- 230–240 V~ 50 Hz
- Driver
- External isolated LED driver
- Dimming
- Not dimmable
Installation
- Installation
- Recessed
- Ingress protection
- IP20
- Insulation rating
- IC-4
- Ambient temperature (ta)
- 25 °C
Physical
- Cut-out
- Ø55 / 75 / 95 mm
- Face diameter
- Ø68 / 90 / 110 mm
- Height
- 40 / 55 / 70 mm
Warranty
- Warranty period
- 3 years
Model range
Popular models
-
MM-CL8
- Power
- 8 W
- Luminous flux
- 650 lm
- Dimensions
- Ø90 × H55 mm
- Cut-out
- Ø75 mm
- Beam angle
- 24° / 36° / 55°
- CCT
- 3000 / 4000 / 6000 K
- CRI
- ≥90
- Power factor
- >0.93
-
MM-CL10
- Power
- 10 W
- Luminous flux
- 850 lm
- Dimensions
- Ø90 × H55 mm
- Cut-out
- Ø75 mm
- Beam angle
- 24° / 36° / 55°
- CCT
- 3000 / 4000 / 6000 K
- CRI
- ≥90
- Power factor
- >0.95
| Model | Power | Luminous flux | Dimensions | Cut-out | Beam angle | CCT | CRI | Power factor |
|---|---|---|---|---|---|---|---|---|
| MM-CL4 | 4 W | 350 lm | Ø68 × H40 mm | Ø55 mm | 24° / 36° / 55° | 3000 / 4000 / 6000 K | ≥90 | >0.8 |
| MM-CL6 | 6 W | 500 lm | Ø68 × H40 mm | Ø55 mm | 24° / 36° / 55° | 3000 / 4000 / 6000 K | ≥90 | >0.88 |
| MM-CL8 | 8 W | 650 lm | Ø90 × H55 mm | Ø75 mm | 24° / 36° / 55° | 3000 / 4000 / 6000 K | ≥90 | >0.93 |
| MM-CL10 | 10 W | 850 lm | Ø90 × H55 mm | Ø75 mm | 24° / 36° / 55° | 3000 / 4000 / 6000 K | ≥90 | >0.95 |
| MM-CL12 | 12 W | 1000 lm | Ø110 × H70 mm | Ø95 mm | 24° / 36° / 55° | 3000 / 4000 / 6000 K | ≥90 | >0.93 |
| MM-CL14 | 14 W | 1150 lm | Ø110 × H70 mm | Ø95 mm | 24° / 36° / 55° | 3000 / 4000 / 6000 K | ≥90 | >0.93 |
| MM-CL16 | 16 W | 1300 lm | Ø110 × H70 mm | Ø95 mm | 24° / 36° / 55° | 3000 / 4000 / 6000 K | ≥90 | >0.93 |
| MM-CL18 | 18 W | 1450 lm | Ø110 × H70 mm | Ø95 mm | 24° / 36° / 55° | 3000 / 4000 / 6000 K | ≥90 | >0.93 |
Technical evidence

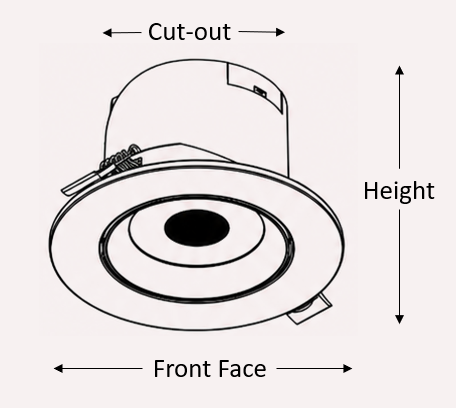

Dimensions & technical drawings
Model dimensions
| Model | Cut-out | Face diameter | Height |
|---|---|---|---|
| MM-CL4 | Ø55 mm | Ø68 mm | 40 mm |
| MM-CL6 | Ø55 mm | Ø68 mm | 40 mm |
| MM-CL8 | Ø75 mm | Ø90 mm | 55 mm |
| MM-CL10 | Ø75 mm | Ø90 mm | 55 mm |
| MM-CL12 | Ø95 mm | Ø110 mm | 70 mm |
| MM-CL14 | Ø95 mm | Ø110 mm | 70 mm |
| MM-CL16 | Ø95 mm | Ø110 mm | 70 mm |
| MM-CL18 | Ø95 mm | Ø110 mm | 70 mm |
Compliance
Compliance & certification
- RCM
- Class II
- IC-4
Standards: AS/NZS 60598.1:2017 · AS/NZS 60598.2.2:2016 · AS CISPR15:2017
Origin: Made in China
Importer: MAISON MAVEN LIMITED
Documentation
Documentation & support
Installation & technical support
Installation documentation is available on request for licensed electricians and specifiers.
Supplier Declaration of Conformity (SDoC)
MM-CL4 – MM-CL18 EESS Registration: E2026004201
