Lighting

Focus Pull-Out Adjustable LED Spotlight

MM-CLX

Light exactly where it is needed.

Popular 8 W · 10 W
CRI ≥90
IP20

Focus Pull-Out adjustable LED spotlight — studio view showing the matte white trim, black anti-glare baffle and adjustable gimbal

The Focus Pull-Out Adjustable LED Spotlight combines a pull-out head with directional adjustment, allowing light to reach past obstacles and be positioned precisely where it is needed. It is well suited to artwork, cabinetry and task surfaces, providing controlled directional lighting that adds focus, depth and contrast to an interior.

Product views

Focus in detail

Specifications

Technical specifications

Electrical

Input voltage / frequency: 230–240 V~ 50 Hz
Driver: External isolated LED driver

Optical

Beam angle: 24° / 36° / 50°–55°
Colour temperature: 3000 / 4000 / 6000 K
Colour rendering (CRI): ≥90
Luminous efficacy: ≥70 lm/W

Mechanical

Installation: Recessed
Main material: Die-cast aluminium + PC
Ingress protection: IP20
Ambient temperature (ta): 25 °C

Warranty

Warranty period: 3 years

Model range

Popular models

MM-CLX8

Power

8 W

Luminous flux

560 lm

Dimensions

Ø90 × H86 mm

Cut-out

Ø80 mm

Beam angle

24° / 36° / 50°

CCT

3000 / 4000 / 6000 K

CRI

≥90

Power factor

>0.93
MM-CLX10

Power

10 W

Luminous flux

700 lm

Dimensions

Ø110 × H105 mm

Cut-out

Ø100 mm

Beam angle

24° / 38° / 55°

CCT

3000 / 4000 / 6000 K

CRI

≥90

Power factor

>0.95

Focus Pull-Out Adjustable LED Spotlight — full model range
Model	Power	Luminous flux	Dimensions	Cut-out	Beam angle	CCT	CRI	Power factor
MM-CLX4	4 W	280 lm	Ø90 × H86 mm	Ø80 mm	24° / 36° / 50°	3000 / 4000 / 6000 K	≥90	>0.8
MM-CLX6	6 W	420 lm	Ø90 × H86 mm	Ø80 mm	24° / 36° / 50°	3000 / 4000 / 6000 K	≥90	>0.88
MM-CLX8	8 W	560 lm	Ø90 × H86 mm	Ø80 mm	24° / 36° / 50°	3000 / 4000 / 6000 K	≥90	>0.93
MM-CLX10	10 W	700 lm	Ø110 × H105 mm	Ø100 mm	24° / 38° / 55°	3000 / 4000 / 6000 K	≥90	>0.95
MM-CLX12	12 W	840 lm	Ø110 × H105 mm	Ø100 mm	24° / 38° / 55°	3000 / 4000 / 6000 K	≥90	>0.93
MM-CLX14	14 W	980 lm	Ø110 × H105 mm	Ø100 mm	24° / 38° / 55°	3000 / 4000 / 6000 K	≥90	>0.93
MM-CLX16	16 W	1150 lm	Ø135 × H131 mm	Ø120 mm	24° / 38° / 55°	3000 / 4000 / 6000 K	≥90	>0.93
MM-CLX18	18 W	1300 lm	Ø135 × H131 mm	Ø120 mm	24° / 38° / 55°	3000 / 4000 / 6000 K	≥90	>0.93

Technical evidence

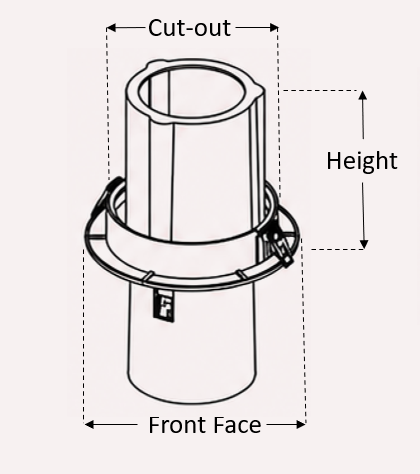

Dimensions & technical drawings

Model dimensions

Focus Pull-Out Adjustable LED Spotlight — model dimensions
Model	Cut-out	Face diameter	Height
MM-CLX4	Ø80 mm	Ø90 mm	86 mm
MM-CLX6	Ø80 mm	Ø90 mm	86 mm
MM-CLX8	Ø80 mm	Ø90 mm	86 mm
MM-CLX10	Ø100 mm	Ø110 mm	105 mm
MM-CLX12	Ø100 mm	Ø110 mm	105 mm
MM-CLX14	Ø100 mm	Ø110 mm	105 mm
MM-CLX16	Ø120 mm	Ø135 mm	131 mm
MM-CLX18	Ø120 mm	Ø135 mm	131 mm
