A refined single-rail design in a slim rectangular profile for contemporary bathrooms, crafted in SUS304 stainless steel and available in four considered finishes.
Finishes

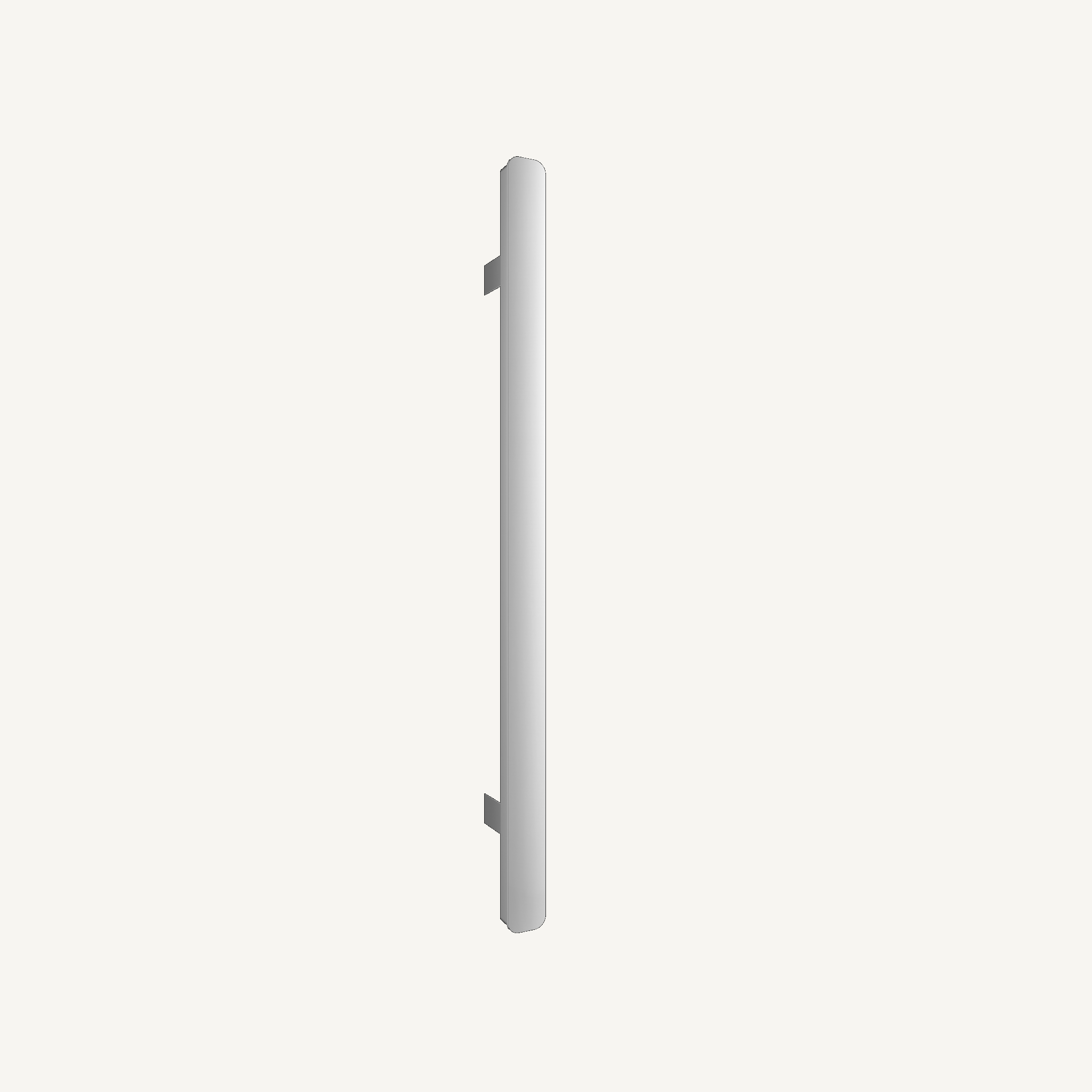

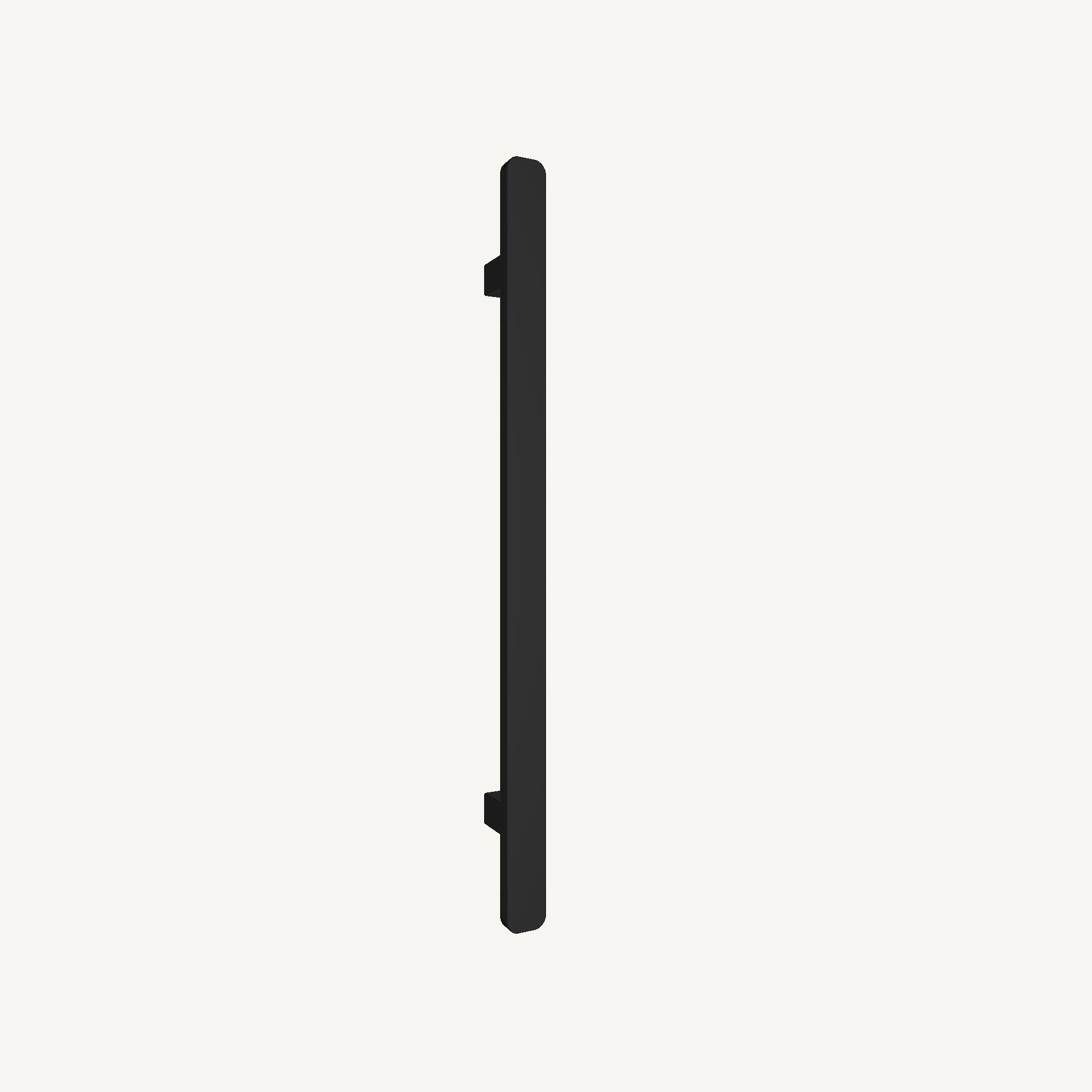

Heated Towel Rail in four finishes
Specifications
Technical specifications
Rated input
- Power
- 27 W
- Voltage
- 220–240 V~ 50 Hz
- Ingress protection
- IP55
- Electrical class
- Class I
Supply configuration
- Electrical connection
- Hardwired directly to fixed wiring during installation
- Transformer
- Required — suitable transformer (12 V output)
- Transformer-side power
- 18 W
Mounting
- Mounting
- Wall-mounted
- Bracket spacing
- 650 mm
Construction
- Material
- SUS304 Stainless Steel
Finish options
- Brushed Gold
- ML761-BG
- Gunmetal Grey
- ML761-GM
- Matte Black
- ML761-MB
- Chrome
- ML761-CH
Warranty
- Warranty period
- 3 years
Technical evidence

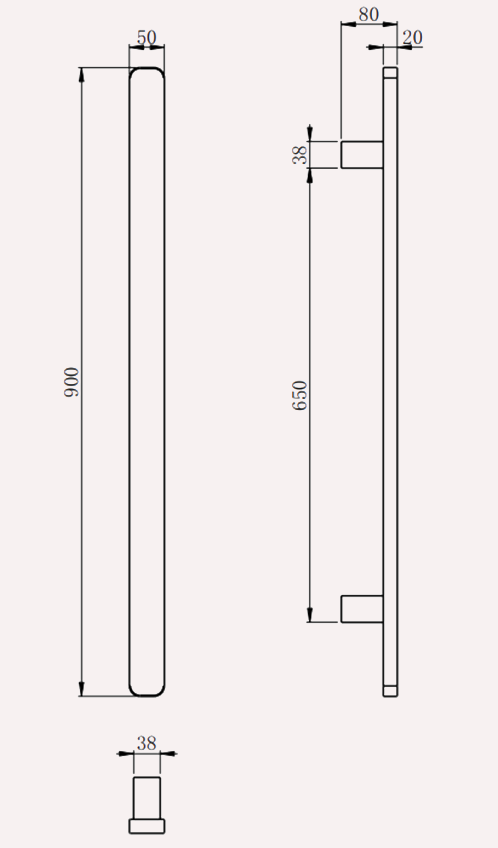

Dimensions & technical drawings
Model dimensions
| Model | Width | Height | Depth |
|---|---|---|---|
| ML761 | 50 mm | 900 mm | 80 mm |
Compliance
Compliance & certification
- RCM
Standards: AS/NZS 60335.2.43:2018 · AS/NZS 60335.1:2020 Inc A1:2021
Origin: Made in China
Importer: MAISON MAVEN LIMITED
Documentation
Documentation & support
Installation & technical support
Installation documentation is available on request for licensed electricians and specifiers.
Supplier Declaration of Conformity (SDoC)
Being finalised — this document will be available here shortly.
