Origin Deep downlights in an open-plan living and dining space

Lighting

Origin Deep LED Downlight

MM-DLX

Deep-recessed lighting with broad, even illumination.

Popular 6 W · 8 W
CRI ≥90
IP20

Origin Deep LED downlight — front view showing the matte white trim and deep black anti-glare baffle

The Origin Deep LED Downlight features a deep-recessed light source that reduces visual intrusion while maintaining a clean, subdued ceiling appearance. Its broad beam distribution provides even, useful illumination across larger areas, making it well suited to kitchens, open-plan living spaces, hallways, home offices and functional areas within hospitality interiors.

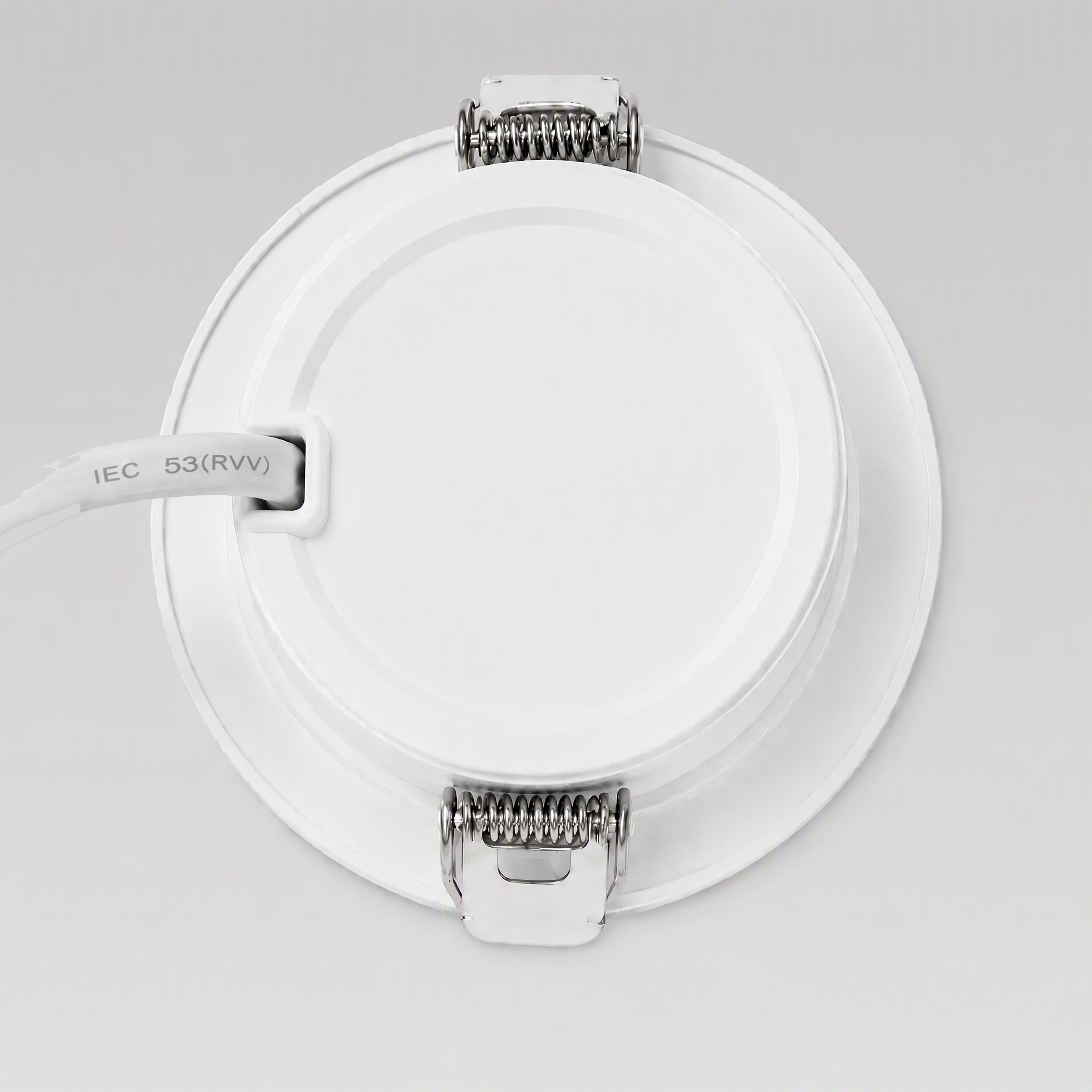

Product views

Origin in detail

Specifications

Technical specifications

Electrical

Input voltage / frequency: 230–240 V~ 50 Hz
Driver: External isolated LED driver

Optical

Beam angle: 70° / 80° / 100°
Colour temperature: 3000 / 4000 / 6000 K
Colour rendering (CRI): ≥90
Luminous efficacy: ≥85 lm/W

Mechanical

Installation: Recessed
Main material: Steel + PC
Ingress protection: IP20
Ambient temperature (ta): 25 °C

Warranty

Warranty period: 3 years

Model range

Popular models

MM-DLX6

Power

6 W

Luminous flux

540 lm

Dimensions

Ø90 × H45.5 mm

Cut-out

Ø75 mm

Beam angle

70°

CCT

3000 / 4000 / 6000 K

CRI

≥90

Power factor

>0.88
MM-DLX8

Power

8 W

Luminous flux

730 lm

Dimensions

Ø110 × H45.5 mm

Cut-out

Ø95 mm

Beam angle

80°

CCT

3000 / 4000 / 6000 K

CRI

≥90

Power factor

>0.93

Origin Deep LED Downlight — full model range
Model	Power	Luminous flux	Dimensions	Cut-out	Beam angle	CCT	CRI	Power factor
MM-DLX4	4 W	350 lm	Ø90 × H45.5 mm	Ø75 mm	70°	3000 / 4000 / 6000 K	≥90	>0.8
MM-DLX6	6 W	540 lm	Ø90 × H45.5 mm	Ø75 mm	70°	3000 / 4000 / 6000 K	≥90	>0.88
MM-DLX8	8 W	730 lm	Ø110 × H45.5 mm	Ø95 mm	80°	3000 / 4000 / 6000 K	≥90	>0.93
MM-DLX10	10 W	900 lm	Ø140 × H48 mm	Ø125 mm	100°	3000 / 4000 / 6000 K	≥90	>0.95
MM-DLX12	12 W	1020 lm	Ø165 × H50.5 mm	Ø150 mm	100°	3000 / 4000 / 6000 K	≥90	>0.93
MM-DLX15	15 W	1375 lm	Ø165 × H50.5 mm	Ø150 mm	100°	3000 / 4000 / 6000 K	≥90	>0.93

Technical evidence

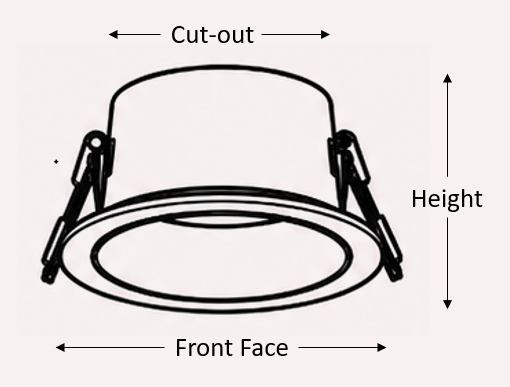

Dimensions & technical drawings

Model dimensions

Origin Deep LED Downlight — model dimensions
Model	Cut-out	Face diameter	Height
MM-DLX4	Ø75 mm	Ø90 mm	45.5 mm
MM-DLX6	Ø75 mm	Ø90 mm	45.5 mm
MM-DLX8	Ø95 mm	Ø110 mm	45.5 mm
MM-DLX10	Ø125 mm	Ø140 mm	48 mm
MM-DLX12	Ø150 mm	Ø165 mm	50.5 mm
MM-DLX15	Ø150 mm	Ø165 mm	50.5 mm
