Coastal Tri-CCT IP44 downlights illuminating a modern bathroom vanity with natural daylight

Lighting

Coastal Tri-CCT IP44 LED Downlight

MM-DLDW

Flexible colour temperature for moisture-prone spaces.

Popular 10 W · 12 W
CRI ≥90
Luminaire IP44 / Driver IP20

Coastal Tri-CCT IP44 LED downlight — front view showing the matte white trim and faceted silver reflector

The Coastal Tri-CCT IP44 LED Downlight combines moisture-ready protection with selectable colour temperature, allowing the light tone to be chosen on-site without changing the fitting. Designed for laundry spaces, bathroom ceilings in suitable dry areas, and covered outdoor areas, it brings flexibility to practical spaces while maintaining a clean, understated ceiling finish.

Product views

Coastal in detail

Specifications

Technical specifications

Electrical

Input voltage / frequency: 230–240 V~ 50 Hz
Driver: External isolated LED driver

Optical

Beam angle: 24° / 36° / 55°
Colour temperature: 3000 / 4000 / 6500 K (selectable)
Colour rendering (CRI): ≥90
Luminous efficacy: ≥70 lm/W

Mechanical

Installation: Recessed
Main material: Die-cast aluminium + PC
Ingress protection: Luminaire IP44 / Driver IP20
Ambient temperature (ta): 25 °C

Warranty

Warranty period: 3 years

Model range

Popular models

MM-DLDW10

Power

10 W

Luminous flux

700 lm

Dimensions

Ø82 × H63 mm

Cut-out

Ø75 mm

Beam angle

24° / 36° / 55°

CCT

3000 / 4000 / 6500 K

CRI

≥90

Power factor

>0.85
MM-DLDW12

Power

12 W

Luminous flux

840 lm

Dimensions

Ø82 × H63 mm

Cut-out

Ø75 mm

Beam angle

24° / 36° / 55°

CCT

3000 / 4000 / 6500 K

CRI

≥90

Power factor

>0.9

Coastal Tri-CCT IP44 LED Downlight — full model range
Model	Power	Luminous flux	Dimensions	Cut-out	Beam angle	CCT	CRI	Power factor
MM-DLDW4	4 W	350 lm	Ø60 × H53 mm	Ø55 mm	24° / 36° / 55°	3000 / 4000 / 6500 K	≥90	>0.8
MM-DLDW6	6 W	420 lm	Ø60 × H53 mm	Ø55 mm	24° / 36° / 55°	3000 / 4000 / 6500 K	≥90	>0.8
MM-DLDW8	8 W	560 lm	Ø60 × H53 mm	Ø55 mm	24° / 36° / 55°	3000 / 4000 / 6500 K	≥90	>0.85
MM-DLDW10	10 W	700 lm	Ø82 × H63 mm	Ø75 mm	24° / 36° / 55°	3000 / 4000 / 6500 K	≥90	>0.85
MM-DLDW12	12 W	840 lm	Ø82 × H63 mm	Ø75 mm	24° / 36° / 55°	3000 / 4000 / 6500 K	≥90	>0.9
MM-DLDW14	14 W	980 lm	Ø82 × H63 mm	Ø75 mm	24° / 36° / 55°	3000 / 4000 / 6500 K	≥90	>0.9
MM-DLDW16	16 W	1120 lm	Ø105 × H76 mm	Ø95 mm	24° / 36° / 55°	3000 / 4000 / 6500 K	≥90	>0.9
MM-DLDW18	18 W	1260 lm	Ø105 × H76 mm	Ø95 mm	24° / 36° / 55°	3000 / 4000 / 6500 K	≥90	>0.9

Technical evidence

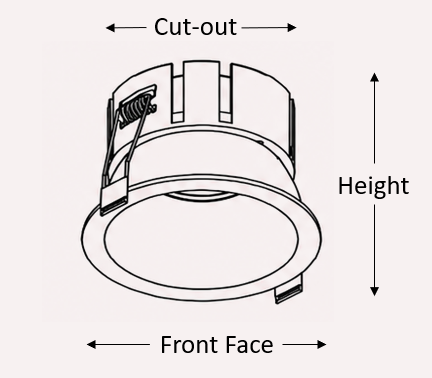

Dimensions & technical drawings

Model dimensions

Coastal Tri-CCT IP44 LED Downlight — model dimensions
Model	Cut-out	Face diameter	Height
MM-DLDW4	Ø55 mm	Ø60 mm	53 mm
MM-DLDW6	Ø55 mm	Ø60 mm	53 mm
MM-DLDW8	Ø55 mm	Ø60 mm	53 mm
MM-DLDW10	Ø75 mm	Ø82 mm	63 mm
MM-DLDW12	Ø75 mm	Ø82 mm	63 mm
MM-DLDW14	Ø75 mm	Ø82 mm	63 mm
MM-DLDW16	Ø95 mm	Ø105 mm	76 mm
MM-DLDW18	Ø95 mm	Ø105 mm	76 mm
